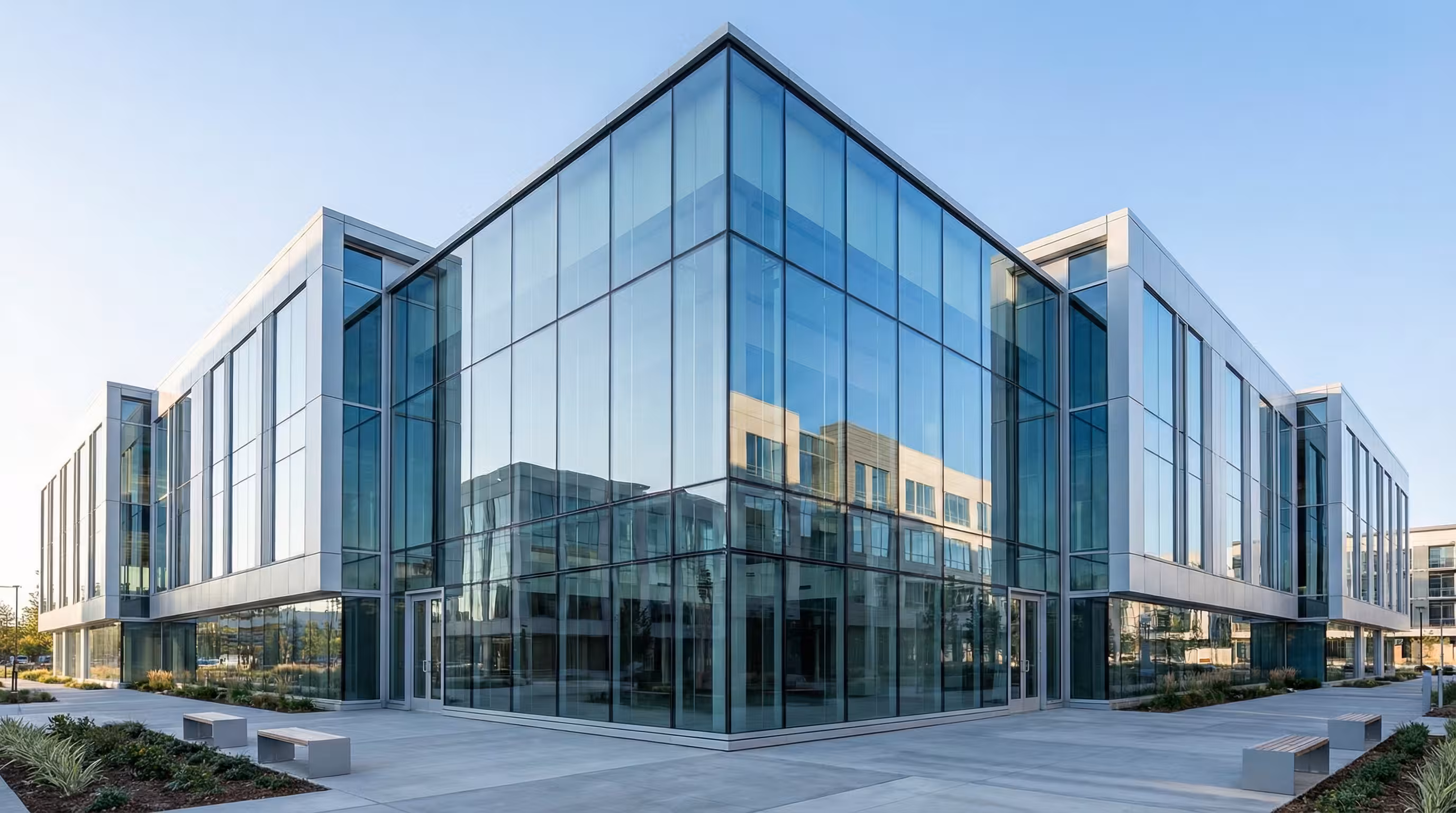

Glass Facade System
Curtain WallDGU ReadyIS 875 Compliant

Glass Facade System

High-performance structural glazing and curtain wall integrated glass systems. Designed for modern commercial buildings with superior weather sealing and thermal break technology.

  • Ideal for commercial office towers
  • Perfect for IT parks & showrooms
  • Excellent for high-rise curtain walls
  • Maximum Natural Light — Floor-to-ceiling glass maximizes daylight penetration into interior spaces.
  • Excellent Weather Seal — Air infiltration ≤ 1.5 m³/hr/m² and water tightness ≥ 300 Pa.
Material:Aluminium 6063-T6 Sections
Thickness:Glass: 6 mm – 12 mm (toughened)
Max Width:1800 mm
Max Height:4000 mm
Wind Load:Up to ±2.5 kPa
Fire Rating:FR Glazing available
Cladding Material
Surface Finish
Joint Profile
● Up to ±2.5 kPa Wind Load● ≥ 300 Pa Class Water● FR Glazing available● U-Value up to 2.8 W/m²K (DGU) Thermal

System Details

Compare Systems

FeatureThis SystemACP Facade
Light TransmissionMaximumNone
Thermal PerformanceHigh (DGU)Moderate
MaintenanceModerateLow
AestheticsGlass TransparencySolid Panel

Applications

Commercial BuildingsIT ParksShowroomsHigh-Rise Towers
